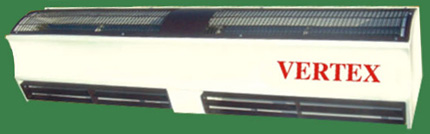

Air Curtains


These aircurtains are silent in function and have variable velocity with minimum of 13 M/Sec to Maximum of 19 M/Sec and the noise level is 50 Db at Minimum & 55 Db at Maximum air velocity.
The impellers are of ABS material, dynamically balanced for maximum air velocity and lowest sound level with pvc cover to reduce the dust settling on the impellers which in turn reduces the load on the motor and have higher efficiency.
The outer casing is c.r.c.a sheet powder coated, white in colour with elegant look matching your interiors and looks similar to split ac.
The motor is of 2 speed, single phase, 50 Hz, double end shaft.

Vertex aircurtains – Normal & Flame proof aircurtains:

We are in the market since 1996 manufacturing these aircurtains  which we offer the air velocities ranging from 11 M/sec, 15 M/Sec, 18 M/Sec, 21M/Sec, 25 M/Sec & 28 M/Sec in both normal & FLAME PROOF aircurtains.

The sizes available with us are 2 ft., 3 ft., 1 mtr., 4 ft., 5 ft., 6 ft. & 2 mtrs.
We use stainless steel & abs make impellers, dynamically balanced for high output of air velocity.
The motors used in normal aircurtains are of AUE brand and for Flame Proof aircurtains are: CROMPTON GREEVES/REMI make.
The outer casing is c.r.c.a sheet powder coated, off white in colour.
For Flame proof aircurtains we offer both end mounted or center mounted motors.
We also provide limit switches for the power saving so that the aircurtain functions only when the door opens.
Vertex aircurtains available in CRCA sheet Powder Coated and  Stainless Steel Grade 316 / 304 with satin finish.

Warranty: One year warranty is offered on all our models.

After sales service: We also offer amc on the aircurtains after the warranty period or  service whenever required after the warranty period.

Our Motto: Customers satisfaction is our ultimate goal.
